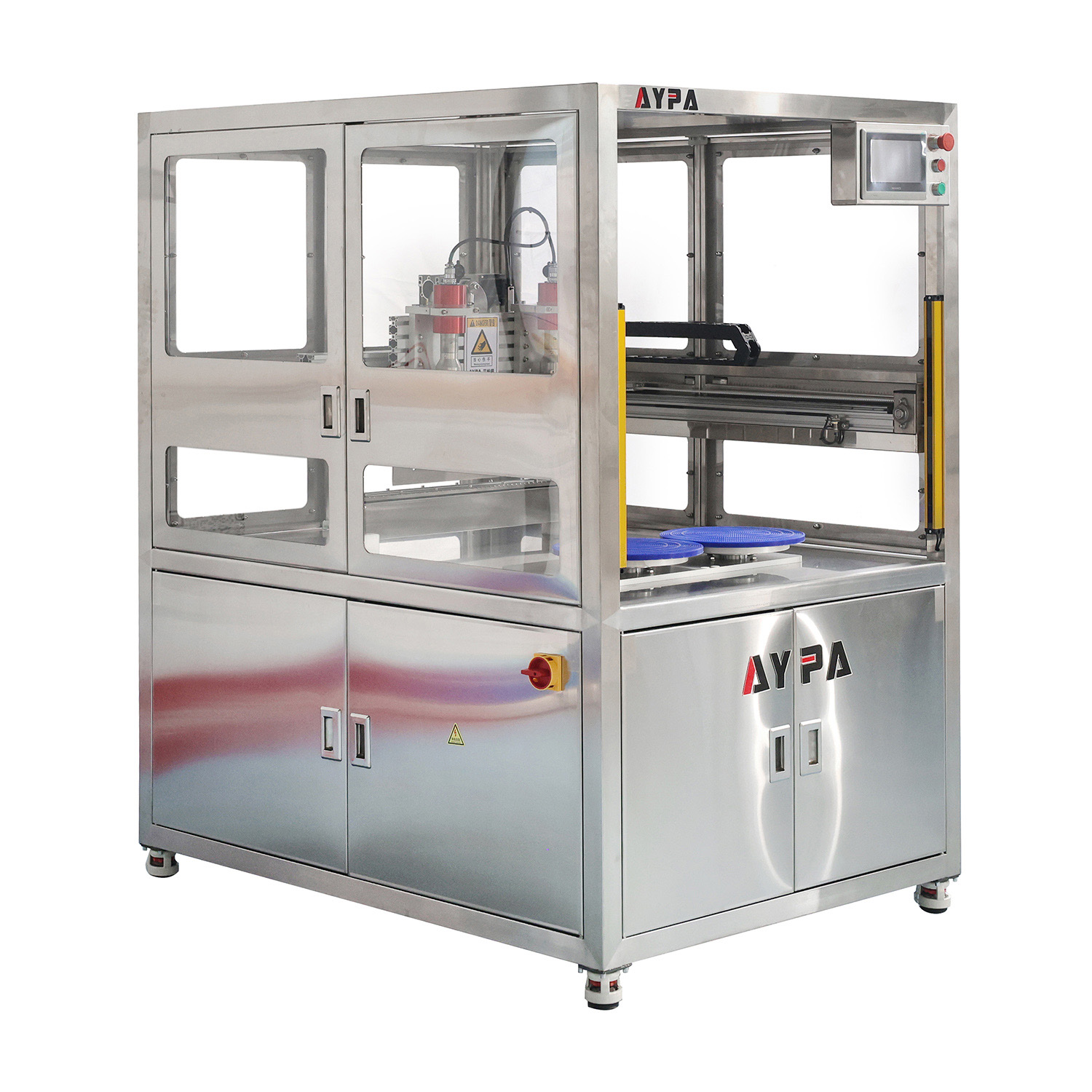

Ultrasonic Cake Cutting Solution

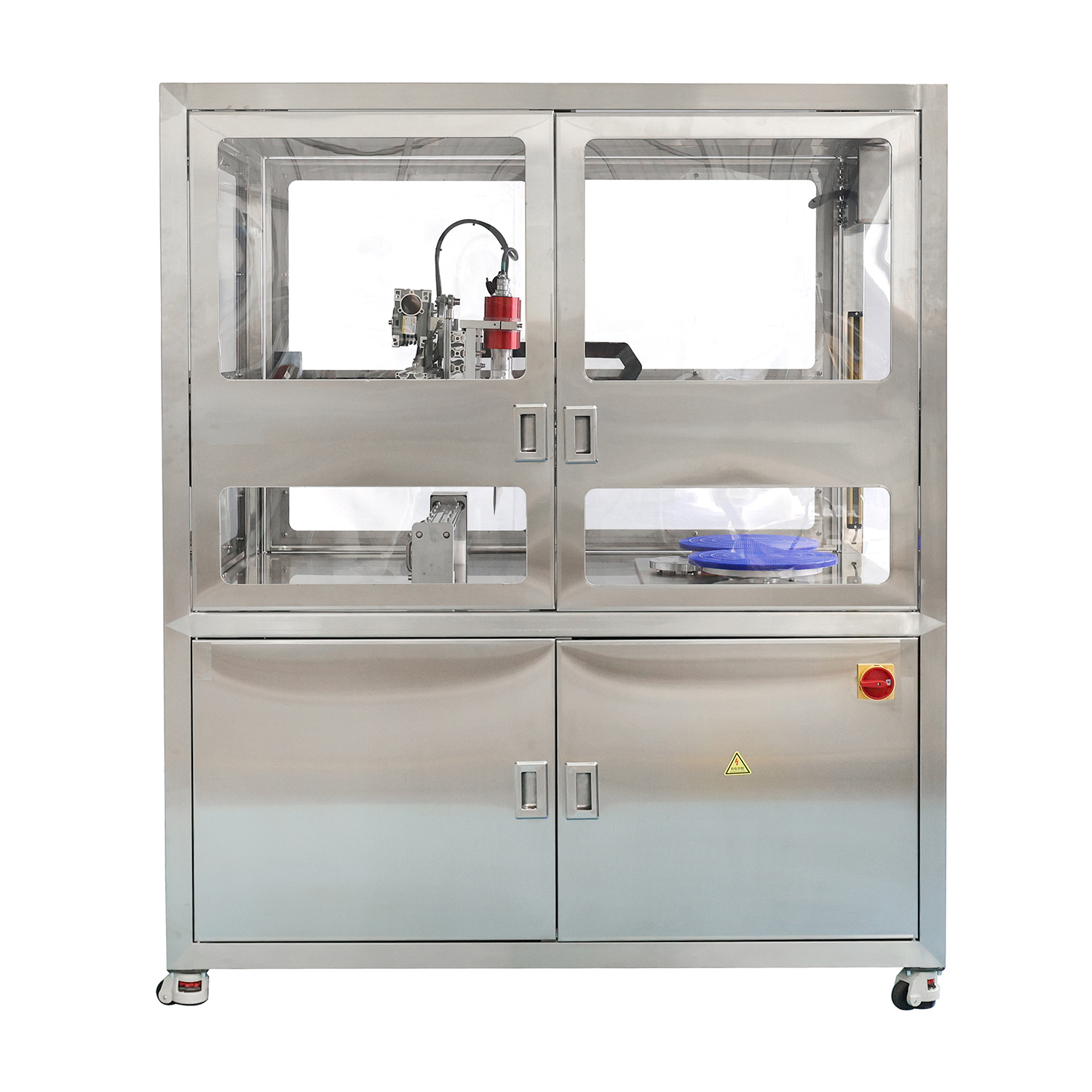

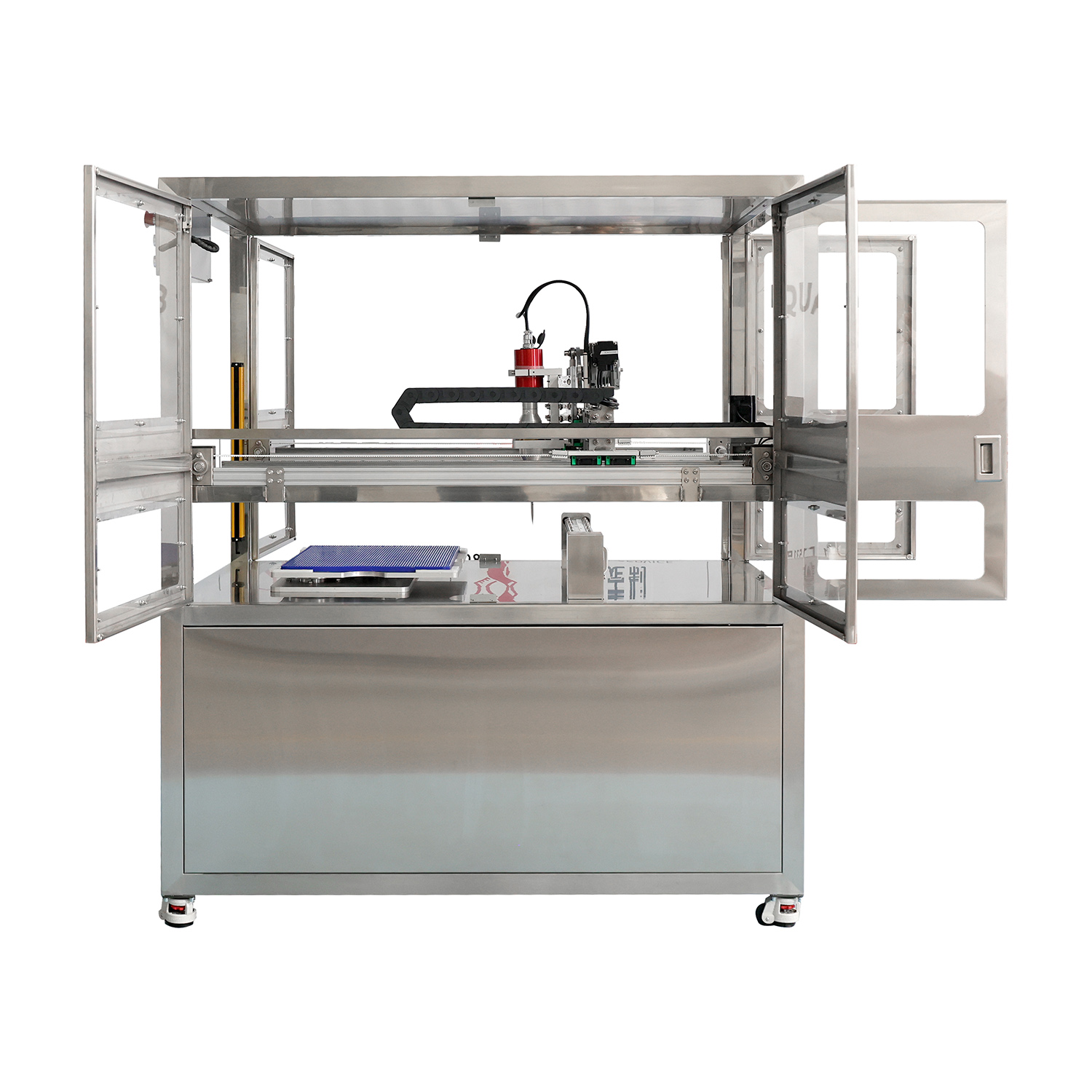

AYPA® Ultrasonic Cake Cutting Machine is designed for high-precision cutting of cakes, desserts and bakery products.
Using high-frequency ultrasonic vibration technology, the blade cuts products smoothly without sticking, deformation or excessive crumbs.
It is suitable for:
* Swiss Roll
* Mousse Cake
* Brownie
* Layer Cake
* Frozen Cake
* Cream Cake
* Candy
The machine can greatly improve cutting quality, production efficiency and product consistency.

Availability:

Quantity:



Inquire Add to Basket

Ultrasonic Cutting Machine Ultrasonic cake Cutting Machine Ultrasonic swiss roll cutter Ultrasonic frozen cake cutting system Ultrasonic layer cake slicing Machine Ultrasonic cheese cake slicer Ultrasonic food Cutting Machine automatic cake cutting machine automatic food cutting machine Ultrasonic food cutter

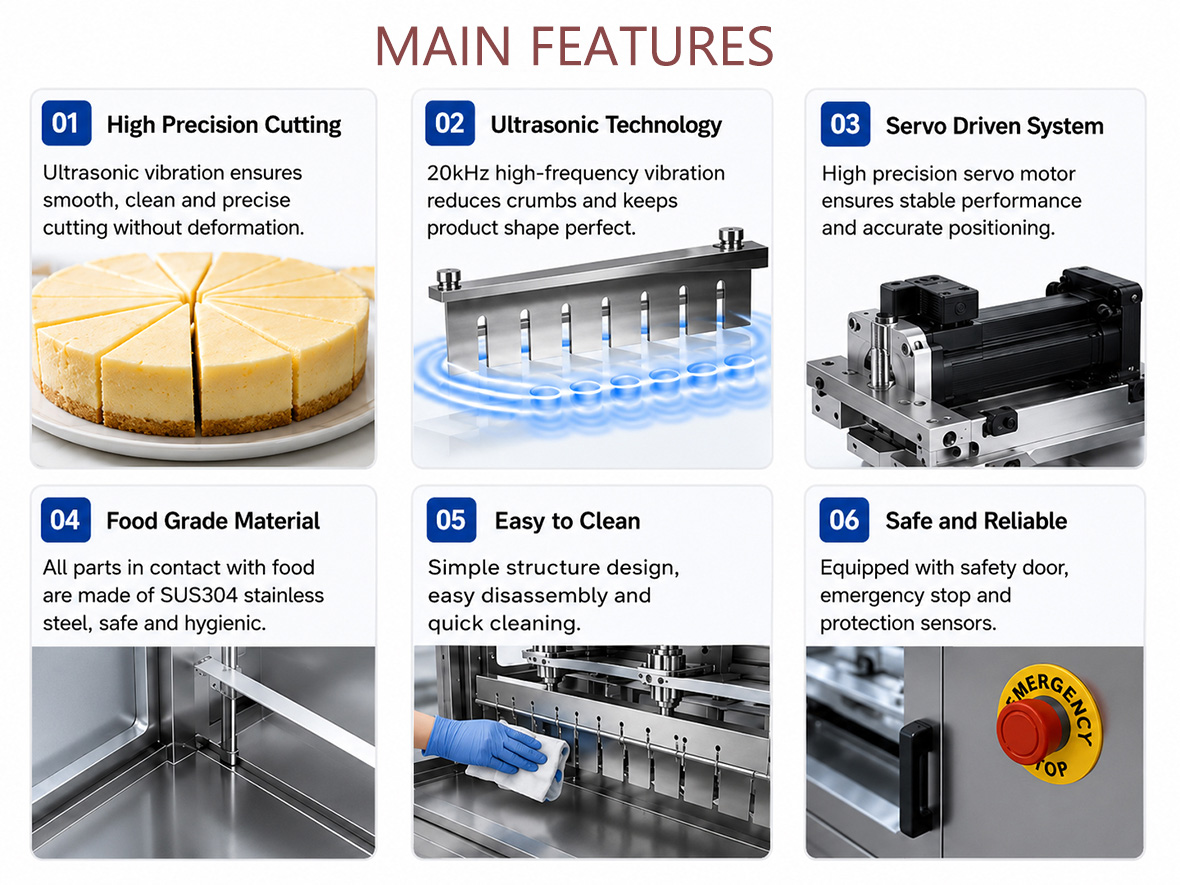

MAIN FEATURES

APPLICATIONS

CUTTING SHAPES

HIGHLIGHTS

TECHNICAL DATA

网页3

网页4

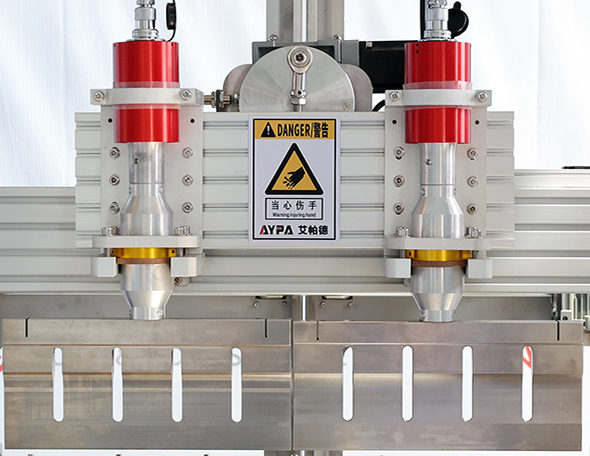

IMG_2921 拷贝111

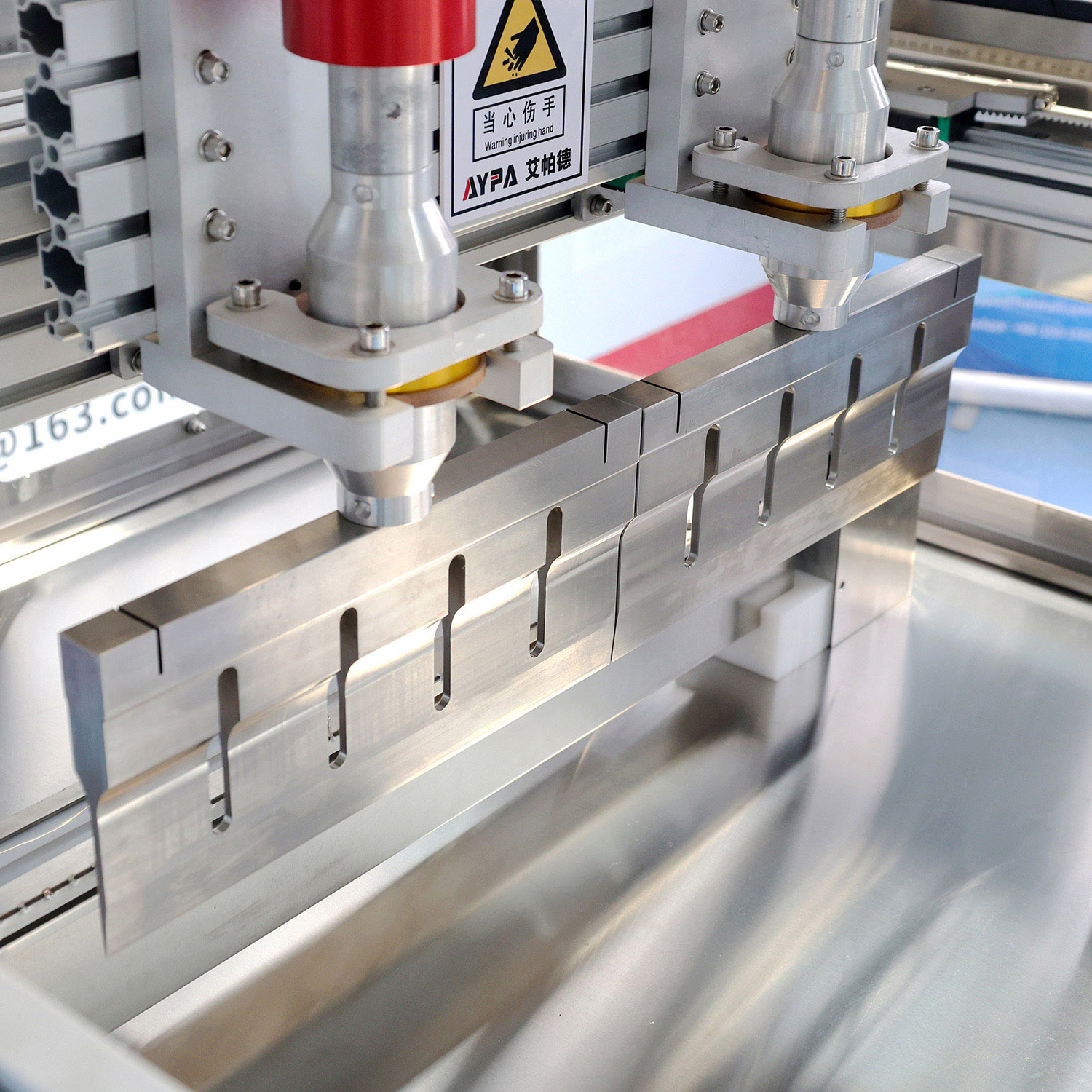

◆ Ultrasonic Blade

Titanium ultrasonic blade for clean cuts.

Smooth edges without product deformation.

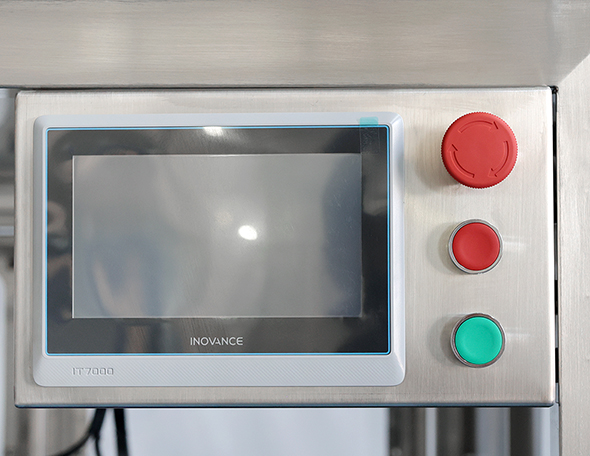

◆ Touchscreen Control

Intuitive PLC touchscreen interface.
Easy operation with recipe storage.

IMG_3110 拷贝111

IMG_2919 拷贝111

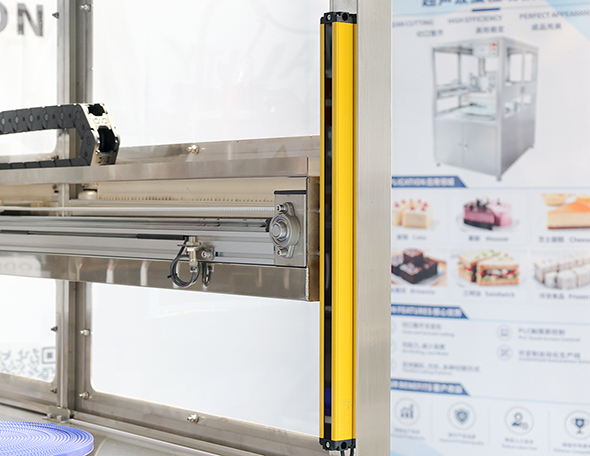

◆ Safety Light Curtain

Integrated light curtain for operator safety.
Stops the machine instantly when triggered.

◆ Auto Blade Cleaning

Automatic blade cleaning after cutting.

Improves hygiene and reduces downtime.

ITEMS		SPECIFICATIONS
Models		AP-C61
Cutting Method		Ultrasonic Cutting
Blade Material		Titanium Alloy
Cutting Speed		70 cuts/min
Blade Width		610 mm(Customized)
Blade Height		140 mm
Ultrasonic power		3.6 kW
Control System		PLC + Touch Screen
Machine Material		Stainless Steel

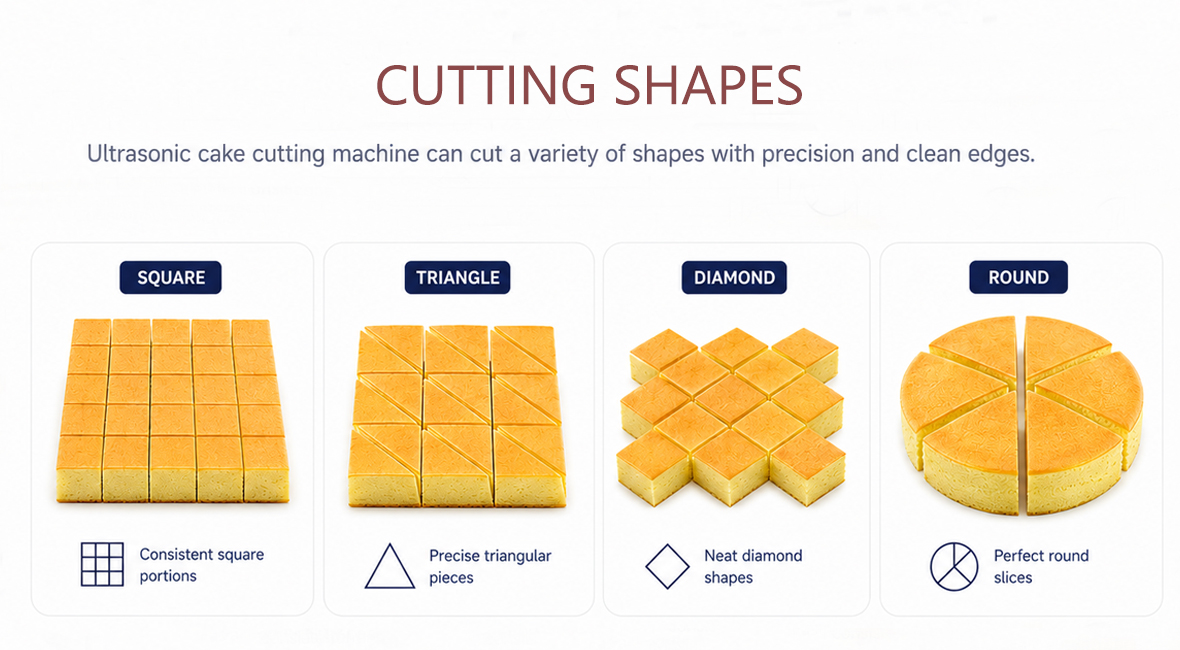

Applicable Cake Shape		Diamond/Round / Square / Rectangle / Triangle
Max. Cutting Size	Square Cake	600*400 mm
	Round Cake	10 inches
Voltage		220V / 380V / 50-60Hz
Machine Dimension		1100x1490x1730 mm
Machine Weight		450 kg
